Grain Corn Soybean Wood Sawdust Board Shredder Grinder Crusher
Machine Multi-Functional Pulverizer
Product Description:
Classification
The hammer mill can crush straw, hay, and whole grains with a large
output and wide range of uses. Raw materials such as whole grains,
straw, rice husk, bran, soybean meal and other materials can be
crushed and made into feed. This type of pulverizer has good
adaptability and is suitable for feed processing on farms. It not
only can crush corn, sorghum, straw and peanut seedlings, but also
pasture and other raw materials.
Wood Shredder
The sawdust pulverizer is a necessary stage for the pre-crushing of
biomass particles. The size of the finished product is adjustable,
with a range from 3-25cm. The output of 2-12mm sawdust is from
100-200 kg/h, which can meet different output requirements.
The wood chipper has the advantage of producing irregular wood
flakes with adjustable size and thickness. It is generally used in
paper mills and suitable for supporting use in different production
lines.
The wood shredder has the characteristics of small size, easy
movement and processing, and is suitable for large and waste
furniture. It can produce sheet or strip products.
The tree branch grinder (garden grinder) is a diesel mobile crusher
for garden pruning, with the finished product being segmented. It
can also be used for crushing straw, cotton stalks, etc.
Features:

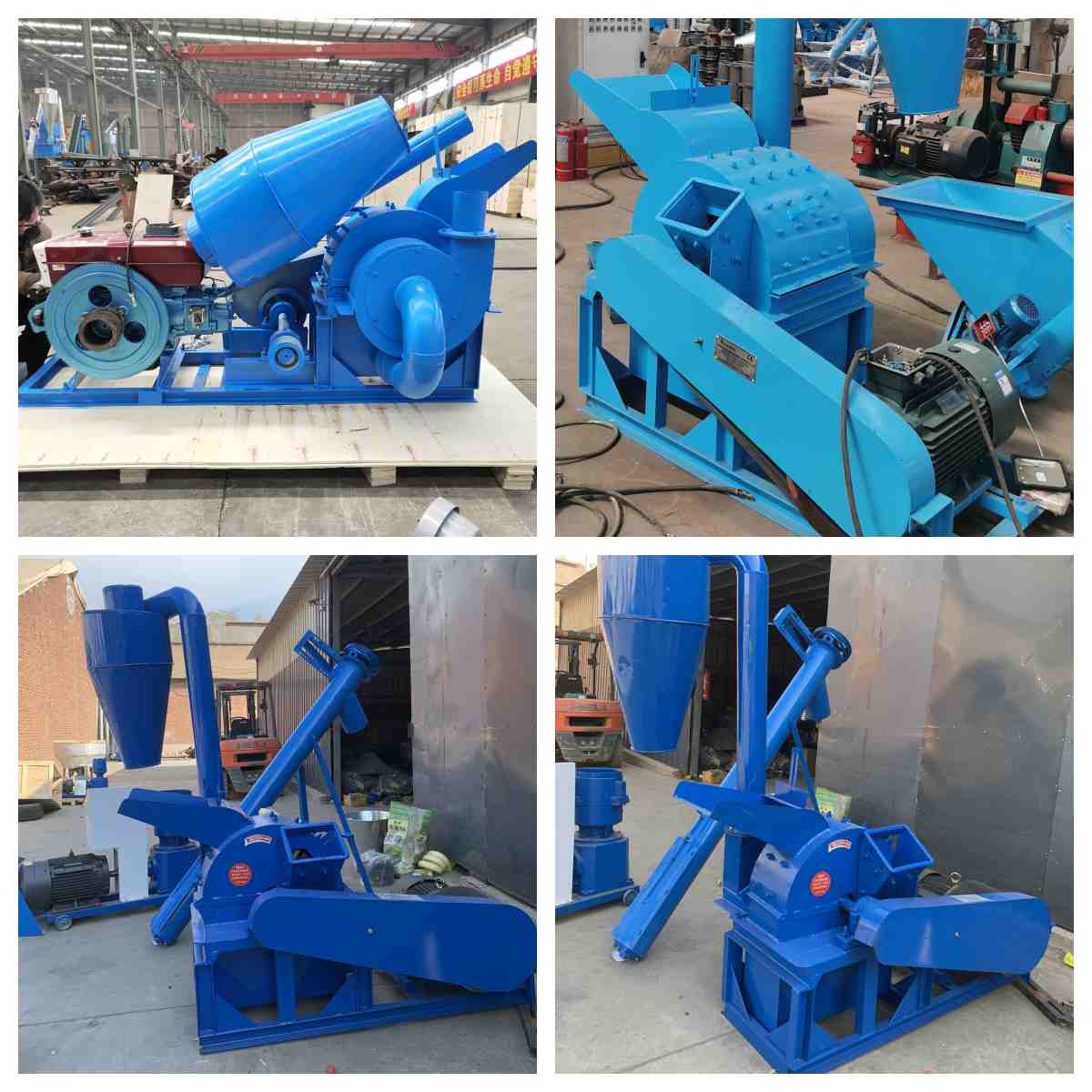

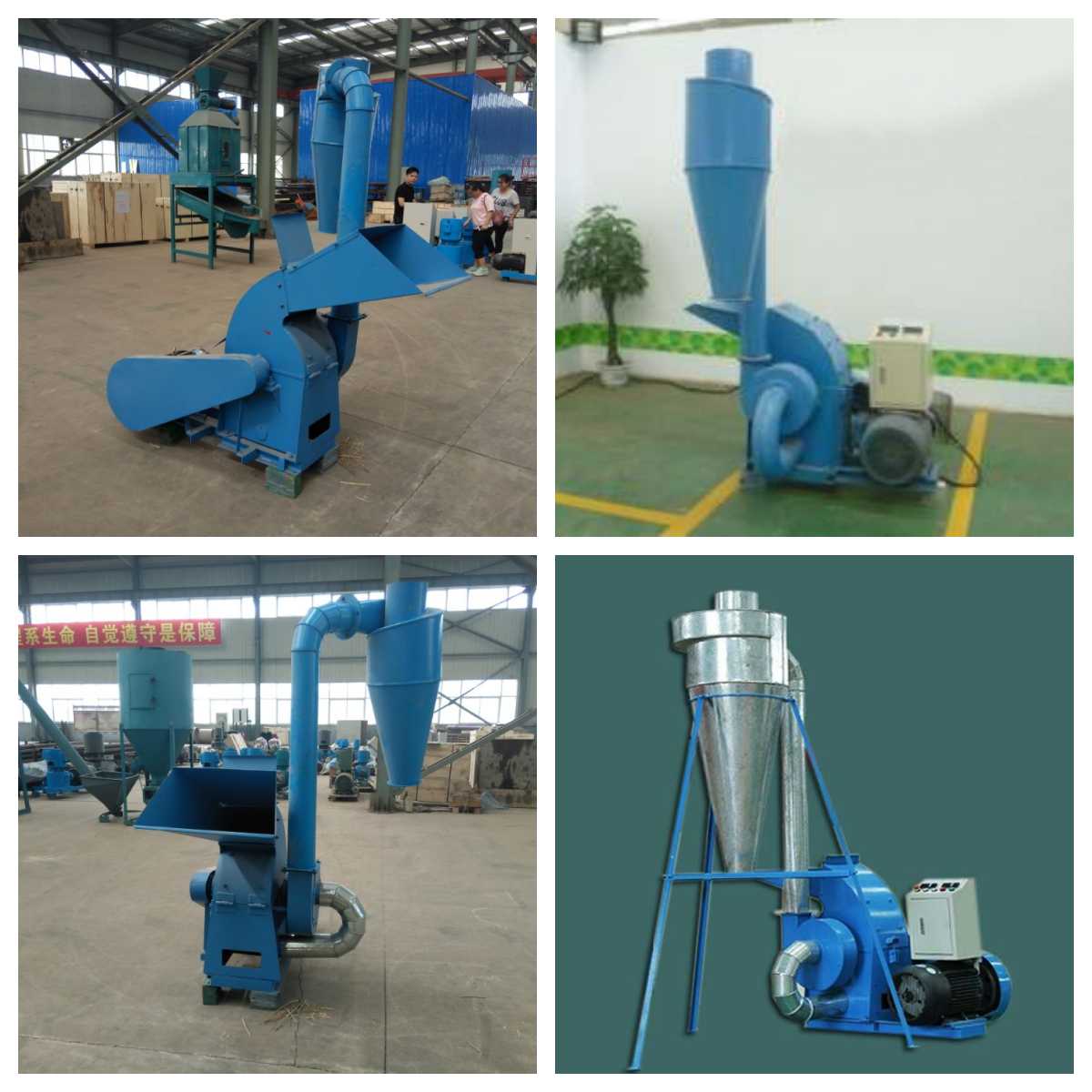

Product Structure and Working Principle of Hammer Mill
This machine is composed of various components, including a feeding
hopper, upper and lower body, rotor, sieve, fan, and feeding pipe.
The material enters the crushing chamber from the hopper and is
smashed by the rotating hammer. Then, it is slammed against the
outer edge of the rotor by continuous blows, collisions and
abrasions of the hammers, tooth plates and sieves. This process is
further accelerated by a centrifugal pressure of the rotor and
suction force of the fan.
The crushed powder is quickly conveyed out through the sieve holes.
An optional Shacron dust removal system is also available.
Technical Parameters:
| Model | Power | Capacity |
FSP158B | 1.5KW | 50-200KG/H |
FSP198B | 3KW | 150-300KG/H |
FSP420B-7.5 | 7.5KW | 200-500KG/H |
FSP420B-11 | 11KW | 300-700KG/H |
FSP500B | 15KW | 800-1700KG/H |
Applications:
The main role of wood shredder is to reduce the size of abandoned
trees into granules or powders, for convenient storage,
transportation and reuse. It can turn the wood into biomass energy
used for heating, electricity production and other purposes. It can
also turn wood into wood chips and wood scraps, used as raw
materials for wood panel production. It also has the ability to
turn big pieces of wood into fine particles, to be used as soil
conditioner, full of organic matter and nutrients.
The tree shredder brings many advantages, such as high efficiency
with combination of machinery and power to quickly crush large
pieces of wood. The processed wood will turn into small particles
or powder which can be better stored and transported, to save time
and cost. After that, the output, such as wood chips, wood powder
and other products, can be reused to make wooden boards, pulp and
other products, and is also suitable to be used as
environmentally-friendly fuels.
