1.5 T/H Waste Wood Pellet Machine Wood Rice Husk Biomass Pellet
Production Line
ZHENGZHOU ZHONGDEBAO INDUSTRIAL CO., LTD. specializes in producing
a complete set of production equipment for biomass particles. We
can customize production plans according to different raw materials
of users and provide different processing equipment, including
crushing section, crushing section, drying section, granulation
section, packaging section, etc. We can also match other auxiliary
equipment according to customer special requirements.
Biomass pellet production line is suitable for various wooden raw
materials such as waste wood, building templates, furniture scraps,
wooden pallets, waste mushroom residue, etc. Straw types include
corn straw, wheat straw, straw, rice husk, peanut husk, cotton
stalks, etc.
The process of Biomass pellet production line:
Log crusher →Sawdust crusher → Dryer→ Vertical Ring die pellet mill
→ cooling machine→ seasoning → packaging machine
The log crusher process: Break logs into chips with a drum chipper
The sawdust crusher process: Crush wood chips into sawdust using an efficient grinder
Dryer process: The moisture of the raw material entering the vertical ring die
pellet machine cannot exceed 20%, if it exceeds, then need to a
dryer to make the raw material moisture low than 20%
Vertical ring die wood pellet machine process: producing biomass pellets
Cooling process: Reduce temperature of pellets
Packing process: Weigh and pack the final pellets into bags
The production line can be equipped with a main control cabinet to
control the operation of all machines and achieve high automation

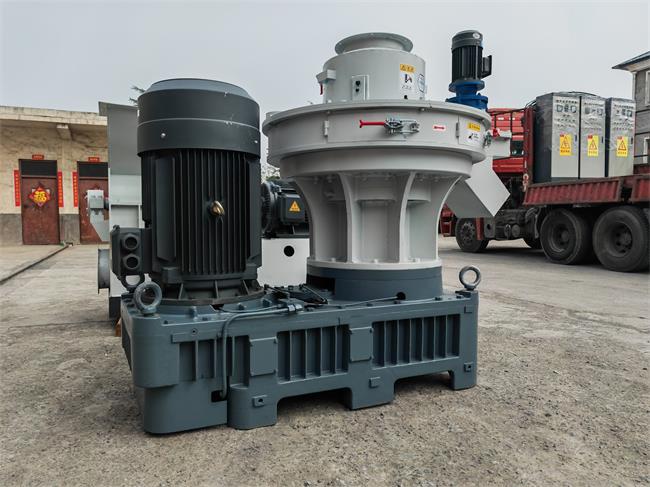

The pellet machine is the core part of the production line, and we
are equipped with a vertical ring die pellet machine that
specializes in producing biomass pellets. Its characteristics are
as follows:
1. Strong automation, stable operation, and no need for dedicated
personnel to take care of.
2. Increase in discharge area
3. The pressure roller has no lock nut structure design, which
reduces oil consumption and prolongs bearing life
4. Heavy duty gearbox transmission, with gear strength increased by
5-10 times, low failure rate, and strong stability
5. Circulating gear oil lubrication to reduce oil consumption costs
and protect bearings
Technical Parameters:
| Model | vertical ring die biomass pellet production line |
| Capacity | 1.5 |
| Voltage | 380V, three phase |
| Pellet size | 6mm,8mm. 10mm, etc. |
| Raw material humidity | not over 20% |
| Main machines | crusher, conveyor, ring die pellet mill, packing machine |
